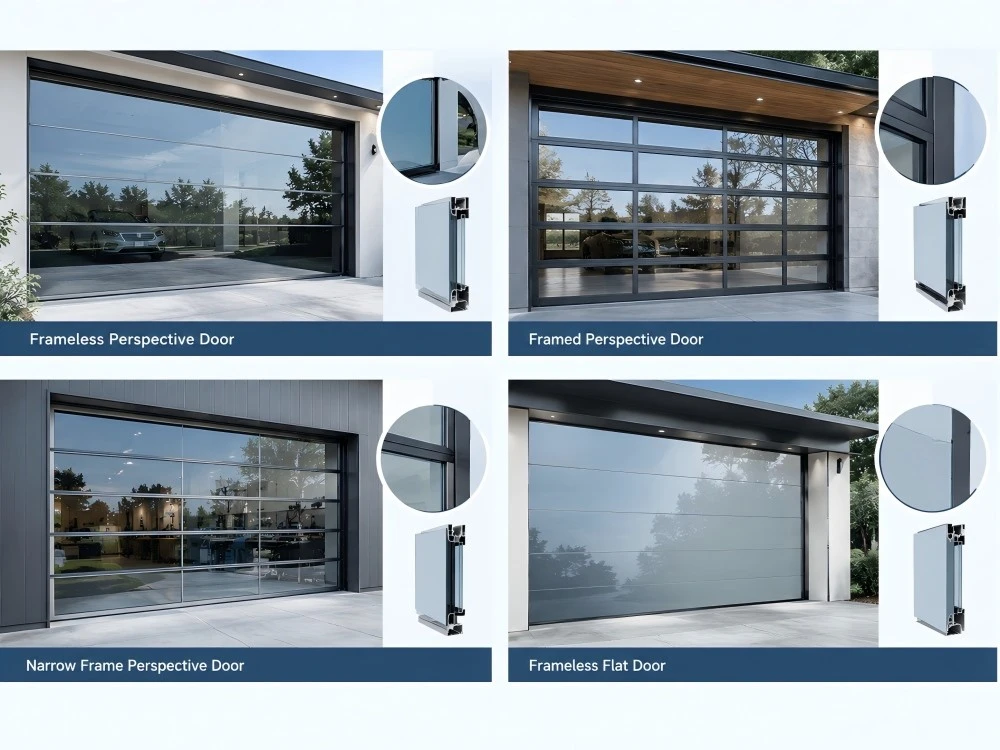

Custom Glass Aluminium Garage Door Types
The frame structure affects the door's appearance, the proportion of visible glass, and the overall panel layout. Comparing construction types helps identify the right design before reviewing individual specifications.
✅ Frameless Perspective Garage Doors：The frameless perspective design emphasizes broad glass sections with a less prominent frame appearance. It suits projects where the glazing is intended to remain a major visual feature.
✅ Framed Perspective Garage Doors：A framed perspective design uses visible aluminum profiles to define individual glass sections. The frame divisions create a more structured appearance across the door surface.
✅ Narrow Frame Garage Doors：Narrow-frame designs place greater visual emphasis on the panel material by reducing the apparent width of the framing. The catalog-listed model uses 1.6 mm aluminum and 3 mm PC panels.
✅ Frameless Flat Garage Doors：The frameless flat design offers another approach to the door
surface, with the catalog listing both glass and 3 mm aluminum panel options for this model.
Glass Options for Aluminium Garage Doors
Glass selection changes how the garage door looks from both inside and outside. The appropriate option depends on whether the project prioritizes visibility, visual screening, or a darker exterior appearance.
| Glass Option | Visual Effect | Suitable Considerations |
|---|---|---|
| Transparent Glass | Clear view through the door | Showrooms, display spaces, and entrances where visibility matters |

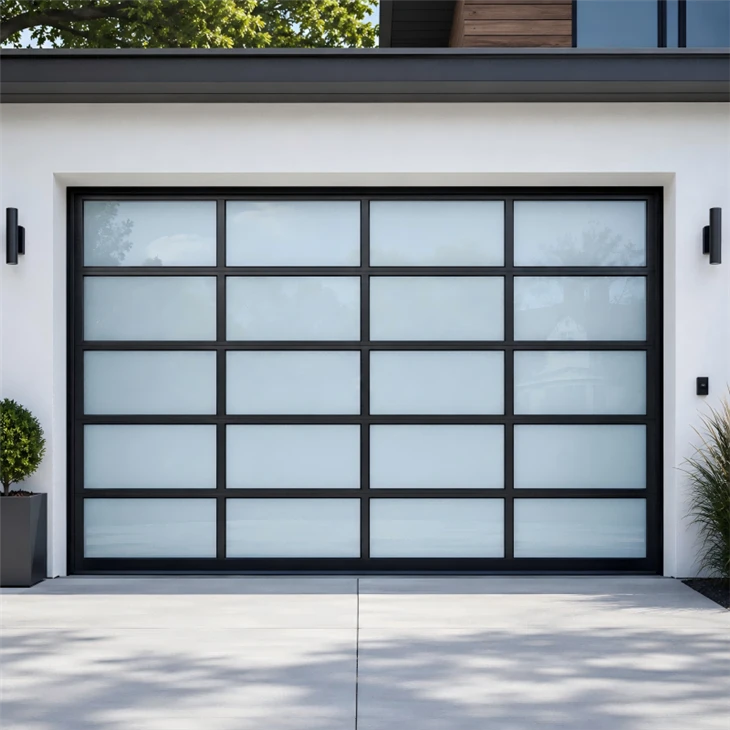

| Frosted Glass | Diffused visibility | Spaces where a less transparent appearance is preferred |
| Black Glass | Dark, reflective-looking appearance | Projects requiring a stronger contrast with the aluminum frame |
| Insulated Glass | Multi-layer glass construction | Projects where the specified glazing assembly is required |
Aluminum Garage Door Specifications
Compare the construction details of the available models instead of treating all glass aluminium garage doors as having the same frame and panel structure.
| Product Model | Door Panel Thickness | Aluminum Thickness | Glass / Panel Specification |
|---|---|---|---|
| Aluminum Alloy Frameless Perspective Door | 50 mm | 3.0 mm | 5 mm glass |
| Aluminum Alloy Framed Perspective Door | 50 mm | 2.0 mm | 5 mm glass; optional 5+6+5 mm insulated glass |
| Aluminum Alloy Narrow Frame Perspective Door | 40 mm | 1.6 mm | 3 mm PC panel |
| Aluminum Alloy Frameless Flat Door | 50 mm | 3 mm | 5 mm glass; 3 mm aluminum panel option |
Glass Aluminium Garage Doors for Different Projects

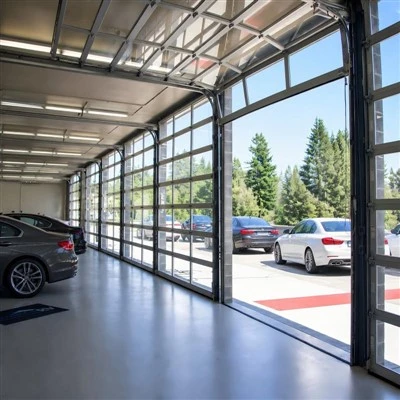

Automotive Showrooms
Transparent glass panels allow vehicles to remain visible from outside the building. Frame layout and glass proportions can be selected to complement storefront glazing and display areas.
Contemporary Residential Properties
Glass and aluminum create a different exterior appearance from conventional solid-panel doors. Frame color and glass finish can be coordinated with windows, façade materials, and other exterior details.
Commercial Entrances
Where the garage door forms part of a visible building frontage, the combination of glazing and aluminum framing can maintain a more open appearance when the door is closed.
Architectural Renovations
Replacing an older solid door with a glass-and-aluminum design can change the appearance of the entrance without requiring the entire façade to use the same material.
Custom Aluminium Glass Garage Doors
For distributors, contractors, and project buyers, customization needs to be assessed against the available door construction rather than assumed to be the same across the product range.
✅ Model Selection: Compare framed, frameless, narrow-frame, and flat-panel designs.
✅ Glass Configuration: Check the available transparent, frosted, black, or insulated glass options for the selected model.
✅ Frame and Panel Finish: Confirm the standard colors and whether additional finishes or panel options are available.
✅ Project Dimensions: Submit the required opening dimensions for review against the manufacturer's production capabilities.
✅ Factory-Direct Coordination: Discuss model specifications, quantities, production arrangements, and shipment requirements with the manufacturer.
China Custom Glass Garage Door Manufacturer & Factory Direct Supplier
Explore our manufacturing facilities, skilled production team, and custom manufacturing capabilities for residential glass garage door projects, distributors, and wholesale buyers
Custom Glass Garage Door Projects
Explore completed projects showcasing different glass styles, aluminum frame designs, and modern architectural applications.
FAQ
1.What glass options are available?
The catalog lists transparent, frosted, and black glass for certain models. An insulated glass option of 5+6+5 mm is also listed for the Aluminum Alloy Framed Perspective Door.
2.Are aluminum panels available as an alternative to glass?
The catalog-listed Aluminum Alloy Frameless Flat Door includes a 3 mm aluminum panel option alongside its listed glass construction.
3.What is the aluminum thickness of these garage doors?
The catalog lists 3.0 mm aluminum for the Frameless Perspective Door, 2.0 mm for the Framed Perspective Door, and 1.6 mm for the Narrow Frame Perspective Door. The correct specification depends on the selected model.
